Android (어댑터뷰, 리스트뷰, 동적으로 항목 추가, 그리드뷰) 본문

Dev/Android

Android (어댑터뷰, 리스트뷰, 동적으로 항목 추가, 그리드뷰)

Walker_ 2024. 5. 10. 13:12

1. 어댑터뷰

 - 하위 클래스를 사용하기에 어댑터뷰의 모양을 설정하고 데이터를 채워주는

 - ArrayAdapter<T> 클래스를 함께 사용

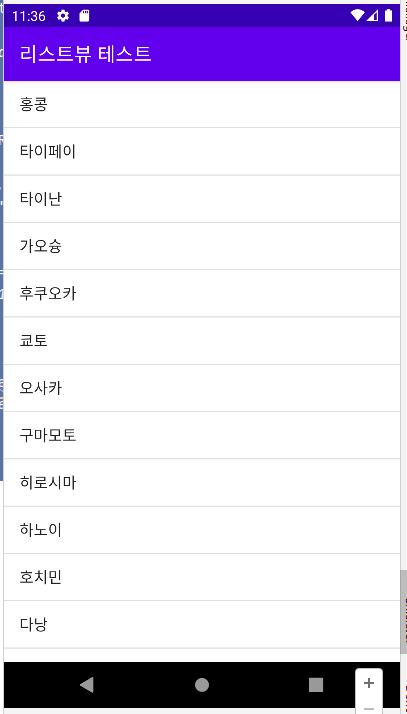

 2. 리스트뷰

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <ListView
        android:id="@+id/listView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

</LinearLayout>
package kr.jeongmo.a0510_project

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.View
import android.widget.ArrayAdapter
import android.widget.ListView
import android.widget.Toast

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        title = "리스트뷰 테스트"

        val listView = findViewById<View>(R.id.listView1) as ListView

        val mid = arrayOf("홍콩", "타이페이", "타이난", "가오슝", "후쿠오카",
        "쿄토", "오사카", "구마모토", "히로시마", "하노이",
        "호치민", "다낭", "하롱베이", "싱가폴", "마카오")

        val adapter: ArrayAdapter<String> = ArrayAdapter(this,
        android.R.layout.simple_list_item_1, mid)

        listView.adapter = adapter

        listView.setOnItemClickListener { adapterView, view, i, l ->
            Toast.makeText(applicationContext, mid[i], Toast.LENGTH_SHORT).show()
        }

    }
}



android.R.layout.simple_list_item_multiple_choice, mid)

listView.choiceMode = ListView.CHOICE_MODE_MULTIPLE

 - 추가로 디자인 변경 가능

2. 동적으로 항목 추가

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <EditText
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/editItem"/>

    <Button
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:id="@+id/btnAdd"
        android:text="항목추가"/>

    <ListView
        android:id="@+id/listView1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

</LinearLayout>
package kr.jeongmo.a0510_project

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.View
import android.widget.*

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        title = "리스트뷰 테스트"

        val listView = findViewById<View>(R.id.listView1) as ListView

        val mid = arrayOf("홍콩", "타이페이", "타이난", "가오슝", "후쿠오카",
        "쿄토", "오사카", "구마모토", "히로시마", "하노이",
        "호치민", "다낭", "하롱베이", "싱가폴", "마카오")

        val midList = mutableListOf<String>()

        val adapter: ArrayAdapter<String> = ArrayAdapter(this,
        android.R.layout.simple_list_item_multiple_choice, mid)

        listView.choiceMode = ListView.CHOICE_MODE_MULTIPLE
        listView.adapter = adapter

        val editItem = findViewById<EditText>(R.id.editItem)
        val btnAdd = findViewById<Button>(R.id.btnAdd)
        btnAdd.setOnClickListener {
            midList.add(editItem.text.toString())
            adapter.notifyDataSetChanged()
        }
        listView.setOnItemLongClickListener { parent, view, position, id ->
            midList.removeAt(position);
            adapter.notifyDataSetChanged()
            false
        }

        listView.setOnItemClickListener { adapterView, view, i, l ->
            Toast.makeText(applicationContext, mid[i], Toast.LENGTH_SHORT).show()
        }

    }
}

\

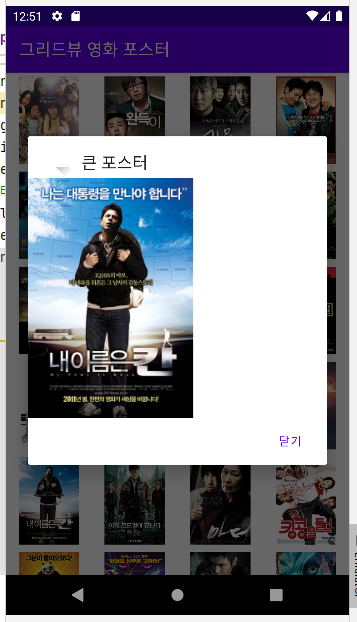

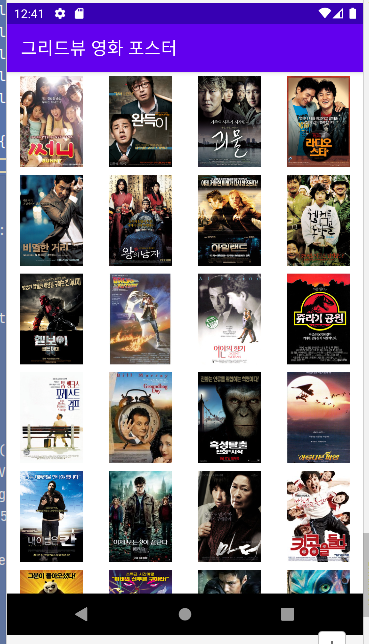

3,. 그리드뷰

 - 프로젝트 새로 생성 후 > dialog.xml 파일 추가

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <GridView
        android:id="@+id/gridView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:numColumns="4"/>

</LinearLayout>

 - activity_main.xml 파일 코드

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:id="@+id/imageViewPoster"/>

</LinearLayout>

 - dialog.xml 파일 코드

package kr.jeongmo.a0510_project_gridview

import android.content.Context
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.View
import android.view.ViewGroup
import android.widget.BaseAdapter
import android.widget.GridView
import android.widget.ImageView
import androidx.appcompat.app.AlertDialog

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        title = "그리드뷰 영화 포스터"

        val gridView = findViewById<GridView>(R.id.gridView)
        val myGridAdapter = MyGridAdapter(this)
        gridView.adapter = myGridAdapter
    }
    inner class MyGridAdapter(val context: Context): BaseAdapter() {
        val posterId = arrayOf(
            R.drawable.mov01,R.drawable.mov02,R.drawable.mov03,R.drawable.mov04,
            R.drawable.mov05,R.drawable.mov06,R.drawable.mov07,R.drawable.mov08,
            R.drawable.mov09,R.drawable.mov10,R.drawable.mov11,R.drawable.mov12,
            R.drawable.mov13,R.drawable.mov14,R.drawable.mov15,R.drawable.mov16,
            R.drawable.mov17,R.drawable.mov18,R.drawable.mov19,R.drawable.mov20,
            R.drawable.mov21,R.drawable.mov22,R.drawable.mov23,R.drawable.mov24,
            R.drawable.mov25,R.drawable.mov26,R.drawable.mov27 ,R.drawable.mov28,
            R.drawable.mov29,R.drawable.mov30,R.drawable.mov31,R.drawable.mov32,
            R.drawable.mov33,R.drawable.mov34,R.drawable.mov35,R.drawable.mov36,
            R.drawable.mov37,R.drawable.mov38,R.drawable.mov39,R.drawable.mov40,
            R.drawable.mov41,R.drawable.mov42,R.drawable.mov43,R.drawable.mov40,
        )
        override fun getCount(): Int {
            return posterId.size
        }

        override fun getItem(p0: Int): Any {
            return 0
        }

        override fun getItemId(p0: Int): Long {
            return 0

        }
        override fun getView(p0: Int, p1: View?, p2: ViewGroup?): View {
            val imageView = ImageView(context)
            imageView. layoutParams = ViewGroup.LayoutParams(200, 300)
            imageView.scaleType = ImageView.ScaleType.FIT_CENTER
            imageView.setPadding(5, 5, 5, 5)

            imageView.setImageResource(posterId[p0])

            imageView.setOnClickListener {
                val dialogView = View.inflate(this@MainActivity, R.layout.dialog, null)
                val dialog = AlertDialog.Builder(this@MainActivity)
                val imageViewPoster = dialogView.findViewById<ImageView>(R.id.imageViewPoster)
                imageViewPoster.setImageResource(posterId[p0])
                dialog.setTitle("큰 포스터")
                dialog.setIcon(R.drawable.ic_launcher_foreground)
                dialog.setView(dialogView)
                dialog.setNegativeButton("닫기", null)
                dialog.show()
            }
            return imageView
        }

    }
}

 - 액티비티 파일 코드











공부 과정을 정리한 것이라 내용이 부족할 수 있습니다.

부족한 내용은 추가 자료들로 보충해주시면 좋을 것 같습니다.

읽어주셔서 감사합니다 :)
